Dry Type Transformer

PRODUCT PARAMETERS：
Executive standards: IEC, GB, ANSI/IEEE, NEMA
Capacity: 30kVA~2500kVA
Primary side rated voltage: 6kV~35kVA
Rated voltage on secondary side: 0.4kV
Number of tap off gears: 5
Frequency: 50/60Hz
Number of phases: three-phase
Connection group: Dyn11/Yyn0, etc
Impedance: 4%~6%

Hotline：+86-570-4982909　销售热线：+86-570-4982880

Description

Feature

Parameter

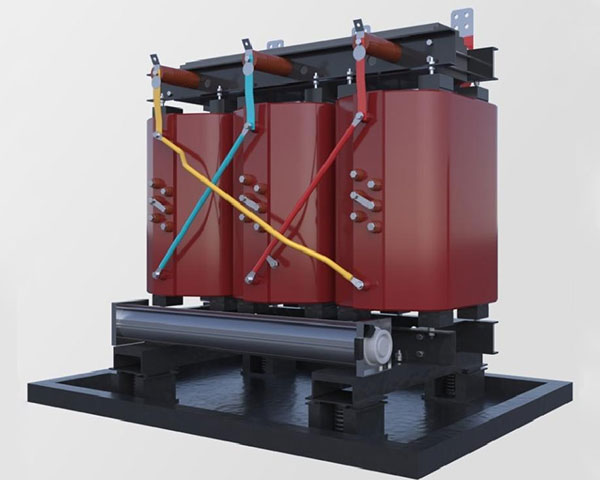

Epoxy resin casting dry-type power transformer is casted by advanced process, with high reliability and long service life. Protective enclosure can be added according to different protection grades. Applicable to high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants and other important or special environmental places. High-performance cold-rolled oriented silicon steel sheet is adopted for the core, and the automatic manipulator laminating machine has small shearing burr and lamination coefficient, which effectively reduces the no-load loss, no-load current and noise of the transformer. No-load loss is 5% - 10% lower than manual lamination.

Technical features:
Low loss: comply with the energy efficiency requirements in GB20052-2020 Limit Values and Energy Efficiency Grades for Power Transformers;
Low noise: meet the requirements of low noise standard of State Grid South Grid;
Low partial discharge: the product only has very low partial discharge, which can be controlled below 5PC.
High mechanical strength; Epoxy pouring body has dense solidification structure and can bear sudden short circuit electrodynamic force without damage.

Rated capacity KVA	Level 1				Level 2				Level 3				short circuit impedance %
	Electrical steel tape				Electrical steel tape				Electrical steel tape
	Empty loss W	Load loss W			Empty loss w	Load loss W			Empty loss W	Load loss W
	Empty loss W	B (100℃)	F (120℃)	H (145℃)	Empty loss w	B (100℃)	F (120℃)	H (145℃)	Empty loss W	B (100℃)	F (120℃)	H (145℃)
30	105	605	640	685	130	605	640	685	150	670	710	760	4.0
50	155	845	900	965	185	845	900	965	215	940	1000	1070
80	210	1160	1240	1330	250	1160	1240	1330	295	1290	1380	1480
100	230	1330	1415	1520	270	1330	1415	1520	320	1480	1570	1690
125	270	1565	1665	1780	320	1565	1665	1780	375	1740	1850	1980
160	310	1800	1915	2050	365	1800	1915	2050	430	2000	2130	2280
200	360	2135	2275	2440	420	2135	2275	2440	495	2370	2530	2710
250	415	2330	2485	2665	490	2330	2485	2665	575	2590	2760	2960
345	510	2945	3125	3355	600	2945	3125	3355	705	3270	3470	3730
400	570	3375	3590	3850	665	3375	3590	3850	785	3750	3990	4280
500	670	4130	4390	4705	790	4130	4390	4705	930	4890	4880	5230
630	775	4975	5290	5660	910	4975	5290	5660	1070	5530	5880	6290
630	750	5050	5365	5760	885	5050	5365	5760	1040	5610	5960	6400	6.0
800	875	5895	6265	6715	1035	5895	6265	6715	1215	6550	6960	7490
1000	1020	6885	7315	7885	1205	6885	7315	7885	1415	7650	8130	8760
1250	1205	8190	8720	9335	1420	8190	8720	9335	16770	9100	9690	10370
1600	1415	9945	10555	11320	1665	9945	1055	11320	1960	11050	11730	12580
2000	1760	12240	13005	14005	2075	12240	13005	14005	2440	13600	14450	15560
2500	2080	14535	15445	16605	2450	14535	15445	16605	2880	16150	17170	18450

Note: The data in the table is for reference only. The company reserves the right to make changes to the data and accepts special orders.
